起源の場所:
中国
ブランド名:
YUYANG
証明:
CE
モデル番号:
YY816
ビデオ
ビデオ
| Attribute | Value |
|---|---|

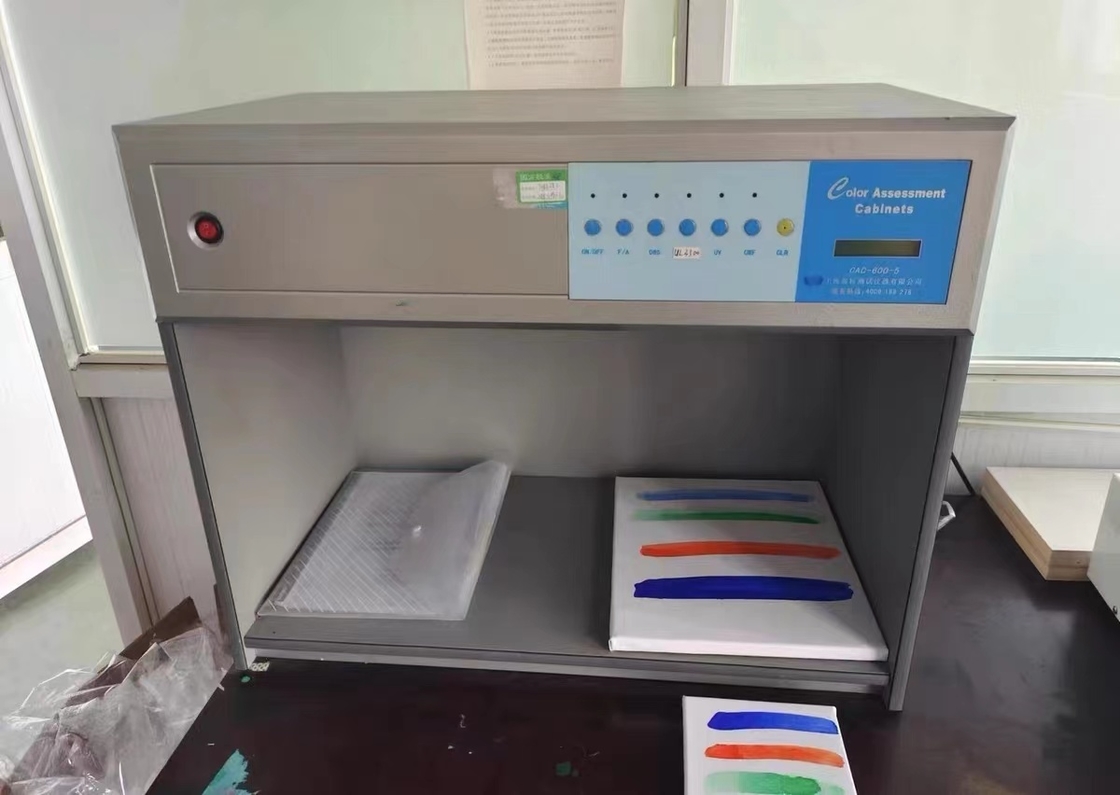

| Product name | Color Assessment Cabinet |
| Power supply | 220V, 380V, 240V, 110V |
| Accuracy | 0.1K |
| Dimension | 72 * 53 * 56 cm |
| Weight | 30kg |
| Interior color | Munsell gray |
| Standard | ASTM D1729, BS 950 PART1, DIN 6173 |
| Use | Textile, leather, chemical plant, printing etc |
| Warranty | 1 year |

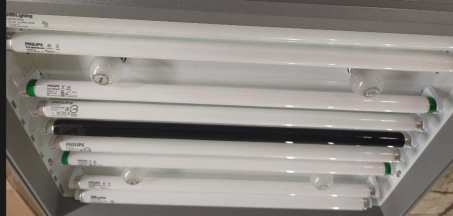

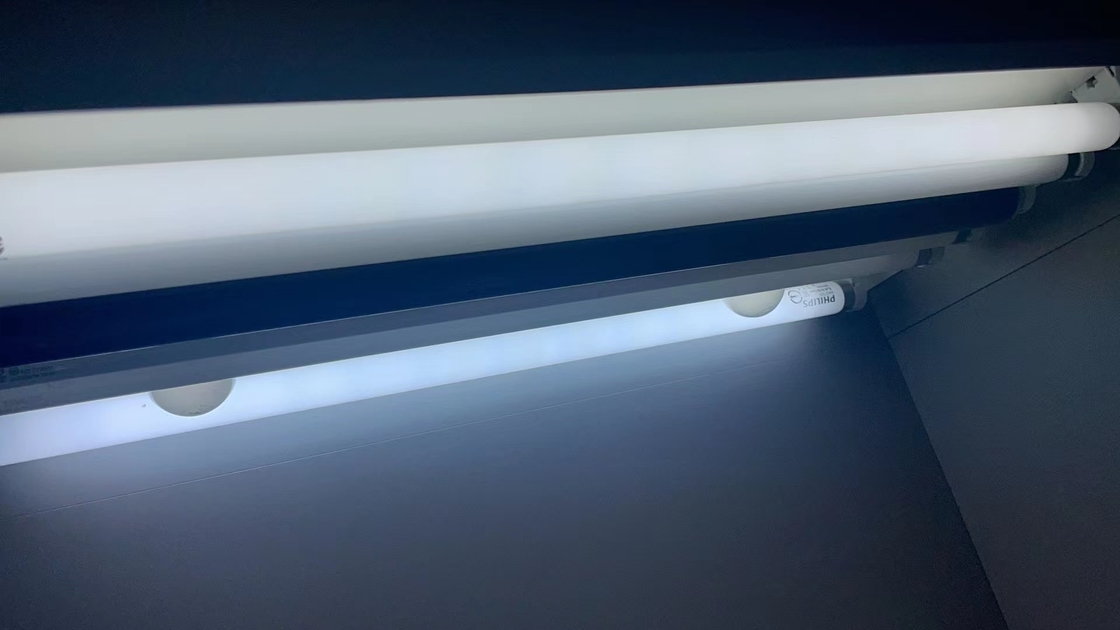

| Light Source | Color Temperature | Lamp Watt | Specification | Application |
|---|---|---|---|---|
| D65 | 6500K | 2pcs*18W | 18W/965 | International Standard Artificial Daylight |
| TL84 | 4000K | 2pcs*18W | 18W/840 | European, Japan Shop light Source |
| CWF | 4200K | 2pcs*18W | 18W/33 COOL WHITE | Cool white Fluorescent/USA Shop Source |
| F/A | 2700K | 4pcs*40W | E27 40W | Sun-setting Light Yellow Light Source |
| UV | / | 1pcs*20W | 20W BLB BLACK LIGHT | Ultraviolet Lamp |
D65: Uses the artificial fluorescent lamp D65 recognized by the international institute of illumination (CIE) as the basic lighting source. In addition to being used for contrasting colors, D65 is also defined as the lighting source for gray scale contrast by people in the world.
UV: Ultraviolet light source. Because fluorescent and brightening dyes are commonly used in industrial production, the best way to detect its effects is to use ultraviolet light, because ultraviolet light is shining on a material that has been stained with fluorescent, which can be easily detected by the naked eye.
F/A: Filament Lighting is suitable for the observation of colors under the light source in the home or hotel room such as the color management of underwear, bedroom supplies and other products.
CWF/TL84: Some customers require to use this light source for color matching. For example American merchants often require the use of Cool White Fluorescent (CWF) light source or U30 light source, and European and Japanese merchant associations require the use of Triphosphor Lamp P15 (TL84) light source.
Inner size: 675*380*360mm
Machine size: 710*420*570mm 32kg
Package size: 800*500*650mm 40kg
