Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

salt spray corrosion test chamber

salt spray test machine for mobile

environmental test chamber with warranty

起源の場所:

中国

ブランド名:

YUYANG

証明:

CE

モデル番号:

YY1009

連絡 ください
引用を要求しなさい
製品詳細
モデル:
YY1009-108L
試験室の大きさ (WxLxH):
600*450*400
機械のサイズ (L×W×H) (mm):
1070*600*1180
実験室温:
NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
飽和器の温度:
NSS.ACSS 47℃ ± 1℃ / CASS 63℃ ± 1℃
湿度:
85%~98%RH
温度範囲:
± 0.5ºC
塩噴霧が減る:
1.0~2.0ml/80cm2/h
電源:
AC220V 50Hz
ハイライト:

salt spray corrosion test chamber

,

salt spray test machine for mobile

,

environmental test chamber with warranty

支払いと送料の条件
最小注文数量
置きなさい/セット
価格
pending
受渡し時間
5
支払条件
L/C、T/T
供給の能力
20
関連製品
連絡 ください
86-769-26622869
今連絡してください
製品説明

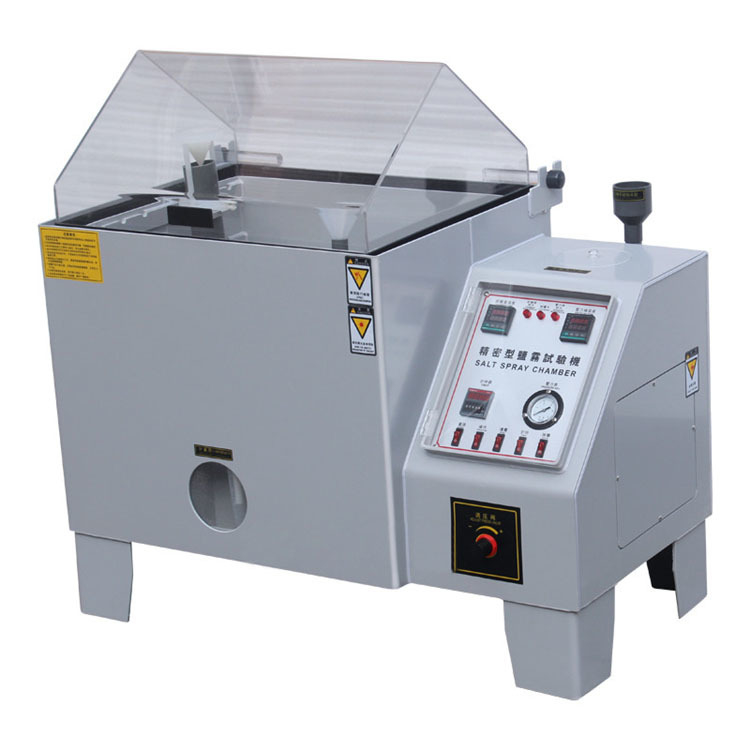

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production
Product Specifications
Attribute Value
Model YY1009-108L
Test room size (WxLxH)(mm) 600*450*400
Machine size (L×W×H) (mm) 1070*600*1180
Lab temperature NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator temperature NSS.ACSS 47°C ± 1 °C / CASS 63°C ± 1 °C
Humidity 85%~98%RH
Temperature range ± 0.5ºC
Salt spray subside 1.0~2.0ml/80cm2/h
Power supply AC220V 50HZ
Product Description

Salt spray test chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after this anti-corrosive treatment to test the corrosion resistance of their products.

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production 0
Construction Details
  • The tester body is made of light gray impact-resistant PVC board with thickness of 5mm and durable temperature at 85℃. The edge is surrounded by three-dimensional reinforcement thickness of 5mm, solid structure
  • The sealing of the test chamber cover is made of PVC impact-resistant board with a thickness of 5mm, which does not distort and deform when used at high temperatures. The edge of the inner and outer double-thickness, to prevent distortion and deformation due to long-term high temperature. Thickness 15mm
  • Hidden one-piece refill bottle, easy to clean and easy to operate
  • The saturated air barrel adopts SUS#304 stainless-steel high-pressure barrel with the best insulation effect

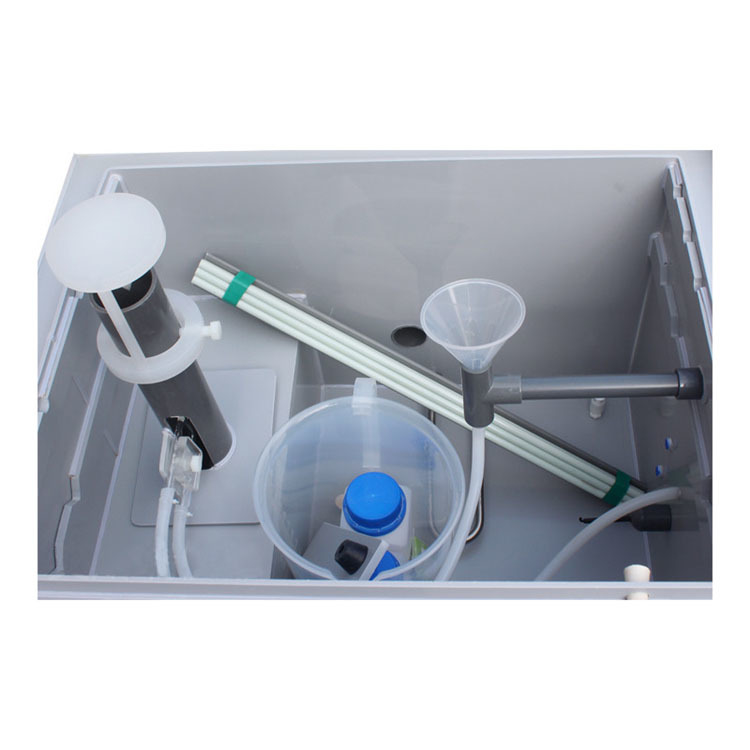

  • The specimen placing table is made of 8mm temperature-resistant ABS board, with strong load-bearing capacity, and the test specimen holder adopts plane indexing type, with arbitrary angle adjustment, even fog falling on all sides, and the fog is completely consistent, with accurate test results and a large number of test specimens placed
Compliance Standards

GB/T 2423.17, IEC60068-2-11, ISO4628-3, ISO9227, ASTM B117, JIS-Z2371, JIS-G3141, GJB 150.1, MIL-STD-810F, MIL-STD-883E and so on.

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production 1 Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production 2 Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production 3 Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production 4 Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production 5
