Name: Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW-005
Price: 25,000.00 USD
Availability: InStock

家へ > 製品 > ワイヤー試験装置 >

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

copper wire elongation tester

cable elongation test machine

wire testing equipment with warranty

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YYW-005

連絡ください

引用を要求しなさい

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

製品詳細

直径範囲:

0.08～0.8mm

引く速さ:

250～300mm/分

開始長さ:

250mmu

拡張範囲:

0～48%

画面の正確さ:

00.1%

入力電源:

AC220V 50/60Hz

サイズ:

50×21×24(cm)

重さ:

23kg

ハイライト:

copper wire elongation tester

cable elongation test machine

wire testing equipment with warranty

支払いと送料の条件

最小注文数量

置きなさい/セット

価格

pending

受渡し時間

支払条件

L/C、T/T

供給の能力

Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester

最良の価格を入手する

ビデオ

巨大な強化ガラス窓付きの電線試験装置用換気型エージング試験槽

最良の価格を入手する

ビデオ

銅線ケーブルの火花のテスター、250-300mm/Min延長の試験機

最良の価格を入手する

連絡ください

86-769-26622869

今連絡してください

製品説明

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

Product Specifications

Attribute	Value
Diameter range	0.08~0.8mm
Drawing speed	250~300mm/min
Starting Length	250mm
Extended range	0~48%
Display Accuracy	0.1%
Input Power	AC220V 50/60Hz
Size	50×21×24(cm)
Weight	23KG

Product Description

The instrument is used to test the elongation characteristics of aluminum, copper, iron and other metal materials. This machine is made of metal materials do damage elongation test; advanced software design and sophisticated electronic sensor technology to measure the amount of tensile test, and automatically converted to LED than the numerical display, easy to read accurate, simple, popular.

Technical Specifications

Sample sampling length	250mm
Specimen diameter	φ0.03-φ1.0mm
Extension range	0-60mm
Measurement Accuracy	±1%
Working power	AC220V, 50Hz, 2A
Machine size	650250250mm

Usage Instructions

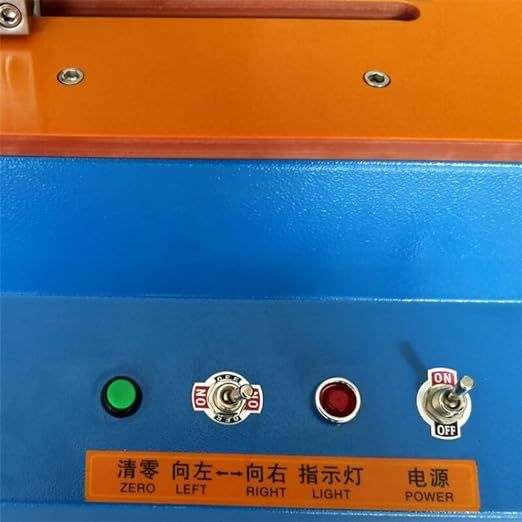

Connect the AC110V power supply to the elongation test stand.
Pull out the power switch to the ON position.

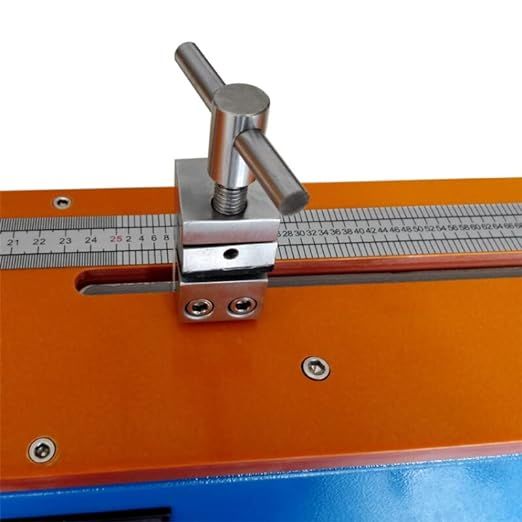

Pull the steering switch to the left. After the motor limit stops, take the 250mm long test object and put it in the left fixture for fastening, then straighten it and put it in the right fixture for fastening.
Press the reset switch to reset, pull the direction switch to the right, the motor slowly tensile test, the counter will be counted according to the percentage of frequency.
The test product is broken after stretching a certain length, the motor will automatically stop, the counter will stop counting, save the test value end of the test. The value displayed by the LED is the stretch length of the product.
For the accuracy of the test, the machine is equipped with a scale. After the test, the scale value corresponding to the indicator can be compared with the display value. To ensure the error of test results.
After the test, turn off the power switch and unplug the power cord.

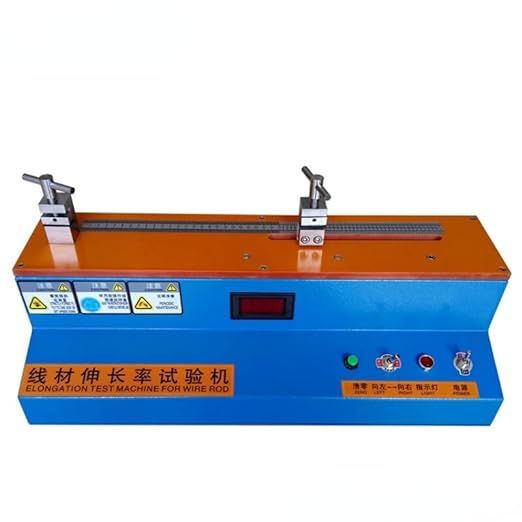

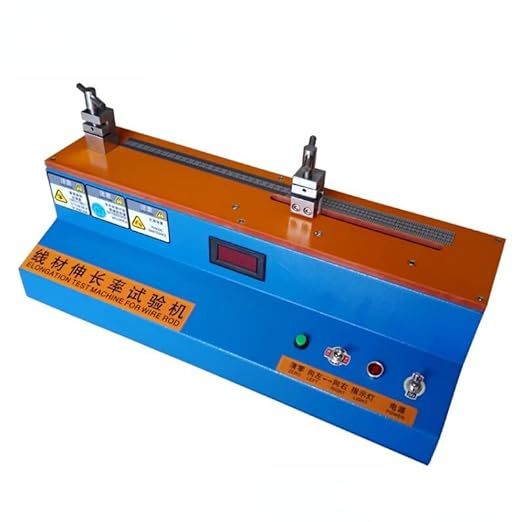

Product Images
