Name: Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY410
Price: 25,000.00 USD
Availability: InStock

家へ > 製品 > 燃焼性の試験装置 >

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

fire testing machine for building materials

surface burning characteristics testing equipment

flammability testing equipment with warranty

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YY410

連絡ください

引用を要求しなさい

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

製品詳細

合板の屋根カバー材料、サイズ:

1,300（w）×1,000（d）×120（h）

電源:

380V 50Hz三相5線系

トンネル炉のテスト:

3.長さ7.62m、オープンエンド断面0.45m * 0.3m、Fireblick Max温度2500℃

バーナー角度:

45°

ガス源:

> 95％プロパンガス;

ガス圧力:

10kpa～50kpa

ハイライト:

fire testing machine for building materials

surface burning characteristics testing equipment

flammability testing equipment with warranty

支払いと送料の条件

最小注文数量

セット/セット

価格

pending

受渡し時間

支払条件

L/C、T/T

供給の能力

Building Materials Ignitability Flammability Tester for Single Flame Source Test

最良の価格を入手する

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

最良の価格を入手する

YY-121 Building Materials Difficult Flammability Test Equipment

最良の価格を入手する

ビデオ

クラスII A2型バイオセーフティキャビネット（奥行780mm）

最良の価格を入手する

連絡ください

86-769-26622869

今連絡してください

製品説明

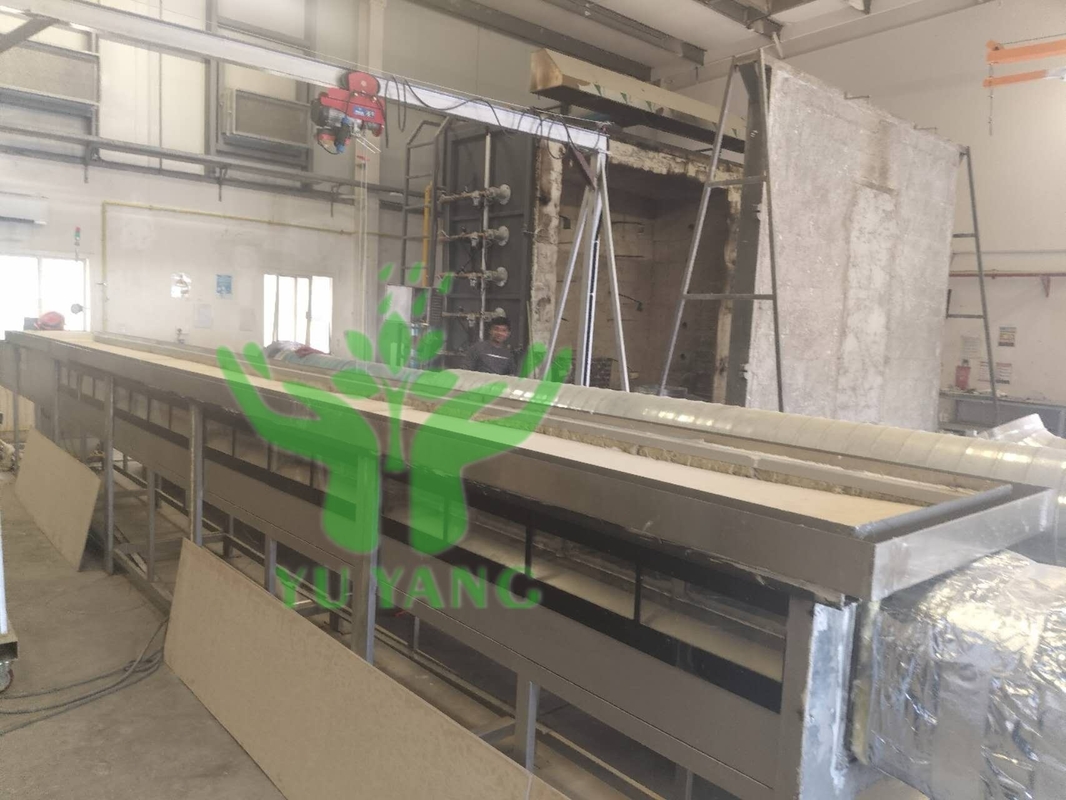

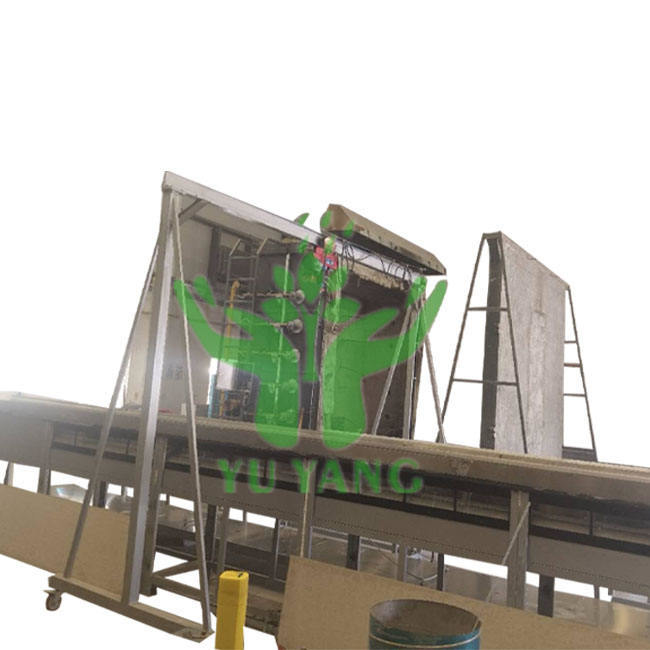

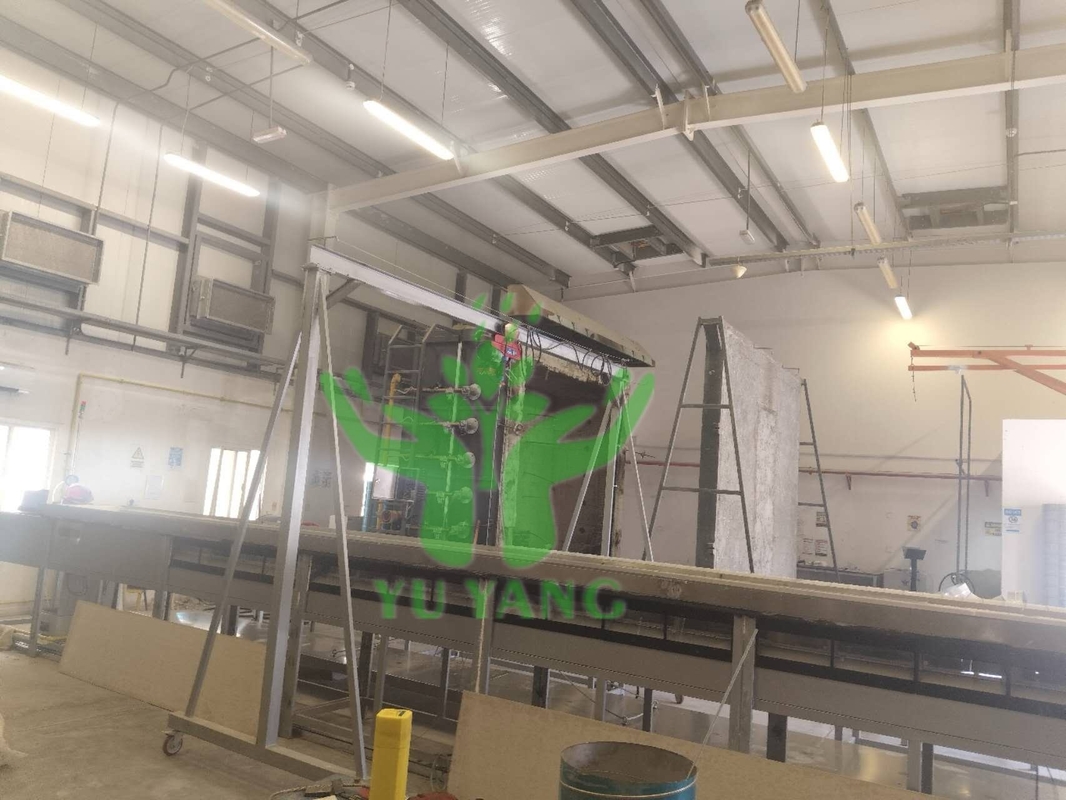

Fire Testing Machine for Building Materials

YY410 UL790 Fire Performance Tester for evaluating surface burning characteristics of building materials and photovoltaic cell modules.

Scope of Application

This equipment evaluates roofing materials exposed to simulated exterior building fires, assessing fire resistance at distances of 1.82m, 2.4m and 3.9m to Class AC. Also suitable for testing photovoltaic cell module fire resistance.

Compliance Standards

UL 1730 Smoke Detector Monitors
UL 790 Standard Test Method for Fire Testing of Roof Coverings
IEC 61730-2 Photovoltaic Modules Appendix A Fire Tests
ASTM F 108-04 Standard Test Method for Fire Tests of Roof Coverings
NFPA 256 Fire Tests for Roof Coverings

Performance Parameters

Plywood roof covering material: 1,300(W) × 1,000(D) × 120(H) mm
Non-combustible test plate to block tempering
Adjustable fan plate: 1,440(L) x 940(H) mm
Corrosion-resistant steel main frame: 1,020(L) x 1,000(D) x 1,473(H) mm
Non-combustible panel assembly: 330(W) x 2,130(D) x 584(H) mm
Test panel air flow rate: 19±8 km/h (5.5m/sec) with anemometer
Independent air duct with honeycomb filter screen

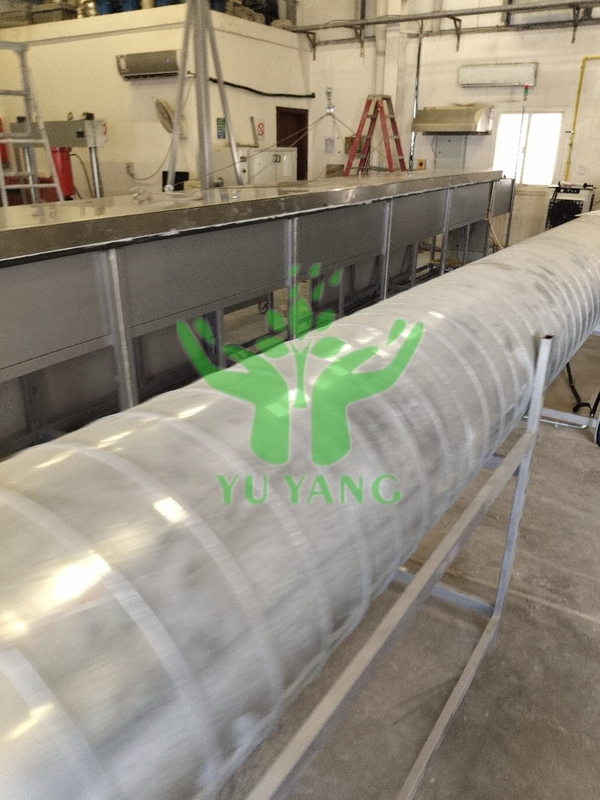

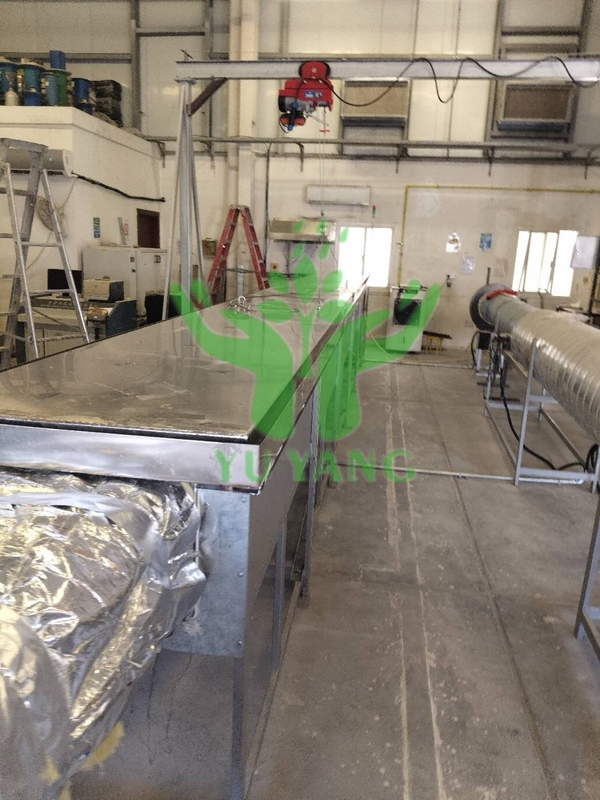

Stainless steel air duct: 2,130(W) x 762(H) x 5,200(L) mm
380V, 50HZ three-phase power fan with reverse system (min flow 300m³/min)
Gas burner: 1.12m long, diameter 60.3mm with 12.7mm wide slit
Gas burner capacity: 22,000Btu/min (387kWh) with automatic flow adjustment
Automatic ignition system (minimum 1.8kVp)
Data acquisition system with LabView programming and NI modules
Industrial control computer with 21-inch monitor and test software
Sample ignition device adjustable to 880±10℃
Rotatable metal grid for material support
Advanced temperature and fan wind speed control systems
Comprehensive gas leakage and carbon monoxide safety alarms
Power requirements: 380V 50HZ three-phase, ≥30KW

Equipment Description

The system consists of an adjustable test platform, non-combustible panel assembly, gas burner, supply fan with air channel, isolation plate, and fire panels. Tests must be conducted in a controlled environment (10-32°C) with all openings closed to prevent external interference.

Before testing, mortar should fill gaps between roof covering material and frame to prevent air/flame passage. Airflow must be calibrated using 1m×1.3m plywood at specified inclination (127mm/300mm).
