Name: ASTM D2843 Smoke Density Test Apparatus For Building Material
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF011
Price: 25,000.00 USD
Availability: InStock

家へ > 製品 > 燃焼性の試験装置 >

ASTM D2843 Smoke Density Test Apparatus For Building Material

ASTM D2843 smoke density tester

building material flammability tester

smoke density test apparatus

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YYF011

連絡ください

引用を要求しなさい

ASTM D2843 Smoke Density Test Apparatus For Building Material

製品詳細

ガス源:

95％のプロパンガス、または同じ純度のガス（顧客がサプリした）

煙密度測定範囲:

0〜100％

煙密度測定精度:

±3％

治療後の焦点距離:

60〜65 mm

メインバーナー作業圧力:

276 kPa（調整可能）

補助バーナー圧力:

138kpa（調整可能）

全体の寸法:

L810 X W490 X H900（mm）

動作電源:

AC220 V、50 Hz;総電力：500 w

温度:

25℃〜35℃。

周波数の許容される変動範囲:

50Hz±1%。

ハイライト:

ASTM D2843 smoke density tester

building material flammability tester

smoke density test apparatus

支払いと送料の条件

BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa

最良の価格を入手する

ビデオ

High-Precision Tester: Glass/Metal/Plastic 3/4-Point Bending, Tensile & Compression

最良の価格を入手する

EN ISO 11925-2 建築材料着火性試験装置

最良の価格を入手する

連絡ください

8613825729462

sales03@yuyangtest.com

86-769-26622869

今連絡してください

製品説明

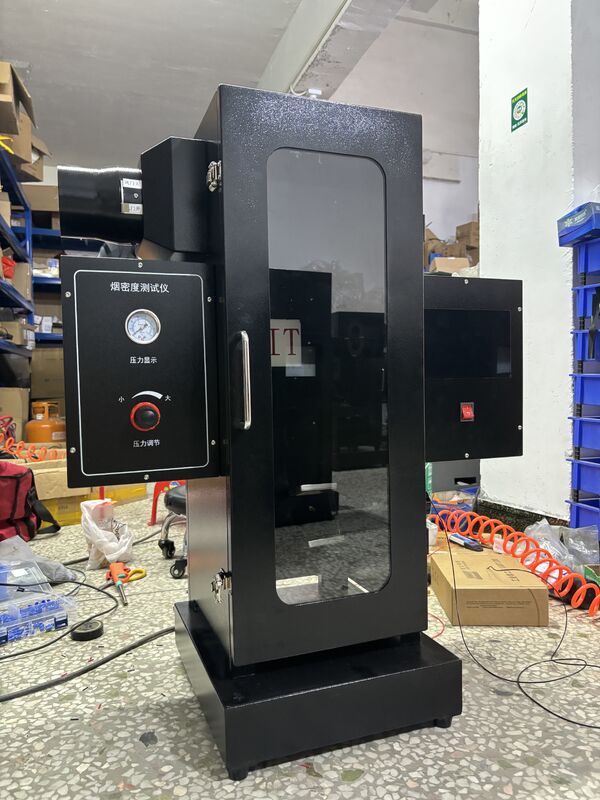

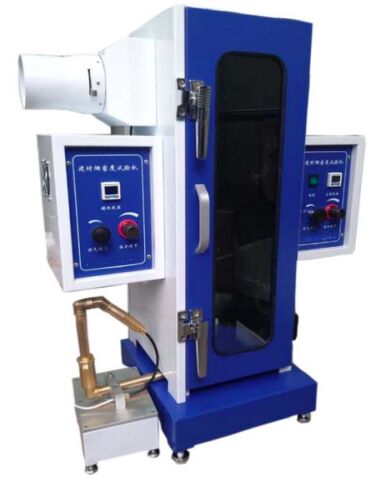

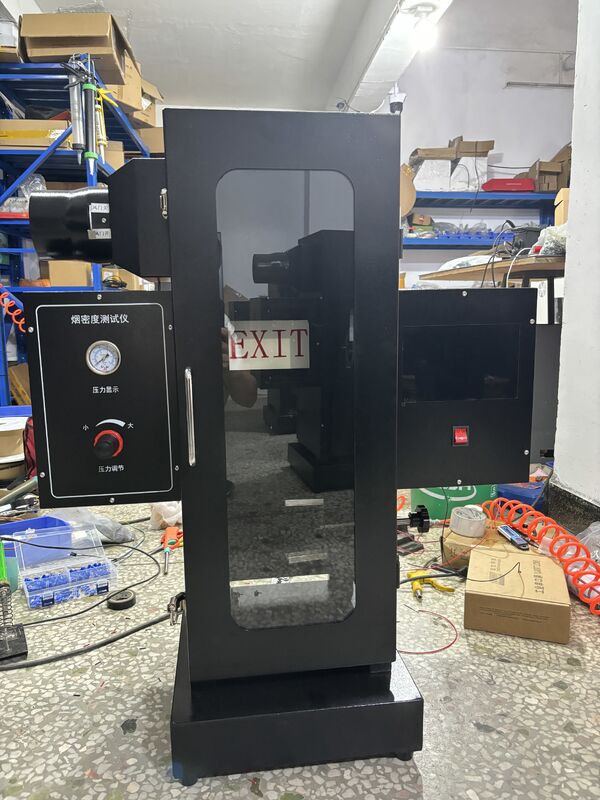

ASTM D2843 Smoke Density Test Apparatus For Building Material

Building Material Burning or Decomposition Smoke Density Test Apparatus

Product Specifications

Attribute	Value
Gas source	95% propane gas, or gas of the same purity (customer-supplied)
Smoke density measurement range	0~100%
Smoke density measurement accuracy	± 3%
Focal length after treatment	60~65 mm
Main burner working pressure	276 KPa (adjustable)
Auxiliary burner pressure	138KPa (adjustable)
Overall dimensions	L810 x W490 x H900 (mm)
Working power supply	AC220 V, 50 Hz; total power: 500 W
HS CODE	9031809090
PC	Not included

Product Description

The Building Material Burning or Decomposition Smoke Density Test Apparatus is designed for determining static smoke content when building materials and other solid materials are burned.

Applications

It is applicable to the determination of static smoke content when building materials and its products are burned. It can also be used for the determination of static smoke content when other solid materials are burned.

Standards Compliance

Meets GB/T8627, ASTM D2843 standard requirements.

Technical Parameters

Parameter	Specification
Gas source	95% propane gas, or gas of the same purity (customer-supplied)
Burning lamp	Length: 260mm, nozzle diameter: 0.13mm, 45° angle with smoke case
Photoelectric system	15W bulb light source, 6V working voltage
Exhaust system	Equipped with powerful exhaust fan for post-test ventilation
Receiver	Silicon photocell with 0-100% light transmittance range
Function	Automatic timing, ignition, smoke exhaust; luminous flux auto-correction
Computer control	Includes light transmittance measurement software with curve report output
Focal length after treatment	60~65 mm
Auxiliary burner pressure	138kpa
Working power supply	AC220 V, 50 Hz; total power: 500 W

Equipment Structure

Consists of combustion box and computer control system
Burning chamber dimensions: L300 x W300 x H790 (mm)
Combustion box made of high-quality non-steel plate, CNC machined
Internal components made of high-quality stainless steel for excellent rust resistance

Operating Conditions

Flat, well-ventilated area free of flammable/explosive/corrosive gases
No strong electromagnetic radiation sources nearby
Adequate maintenance space around equipment
Temperature: 25℃ ~ 35℃
Power supply: AC220V/50HZ with ±10% voltage fluctuation allowance
Frequency allowance: 50Hz±1%
Requires dedicated air/power switch of appropriate capacity

Key Features

Dual control mode (touch screen or computer)
Multiple computers can operate one device simultaneously with LAN sharing
Automatic rotation and precise positioning of main/auxiliary burners
Custom control programs for comprehensive test operations and reporting
