ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

起源の場所:

広東省、中国

ブランド名:

YUYANG

証明:

CE

モデル番号:

YYF008

連絡 ください
引用を要求しなさい
製品詳細
熱流束範囲:
0-15Kw/m2
熱流束精度:
±0.2Kw/m2
排気速度:
2.5±0.2m/s
炎の高さ:
60-120mm調整可能
イグニッションシステム:
高電圧電子機器
ガス流量:
0.026±0.002L/S
総電力:
2KW
電源:
AC 220V、50Hz
放射エネルギー束:
1.1~10.9kW/㎡
熱流束計範囲:
0-50kw/m2
表面放射性:
ε=0.95±0.05
動作電圧:
230V 10A
動作温度:
10°Cから35°C
放射パネル角度:
30º
ガス供給:
プロパン・空気圧縮機
ハイライト:

ISO 9239-1 flooring radiant heat tester

,

ASTM E 846 flammability test machine

,

radiant heat flux test apparatus

支払いと送料の条件
最小注文数量
1
製品説明
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus
This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.
Product Overview
The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.
This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.
Compliance Standards
• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy
Key Features
  • Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
  • Stainless steel sample support assembly on sliding platform for safe and easy sample loading
  • Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
  • Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
  • Dummy calibration specimen with holder and calibrated heat flux meter
  • Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
  • Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
  • Integrated smoke measuring system according to DIN 50055

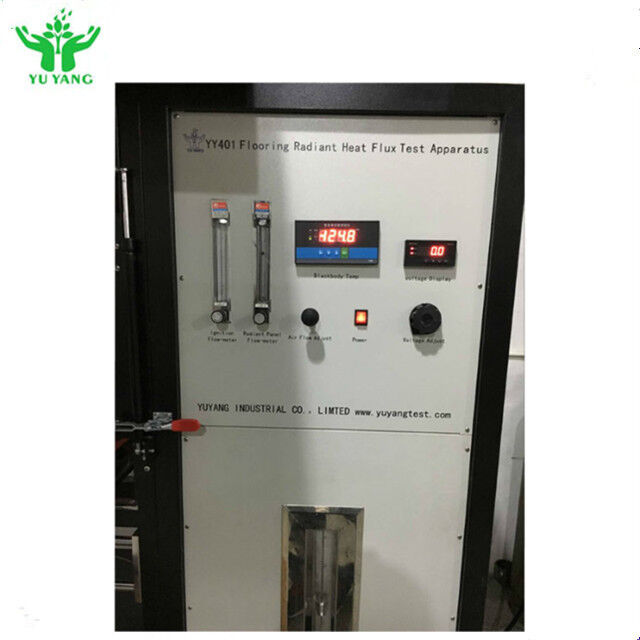

  • Control rack for convenient observation and operation during setup and calibration
  • Automatic ignition of radiant panel with safety cut-out
  • Automatic moving T-type ignition burner
  • Stainless steel hood with smoke measurement ports
Installation Requirements
Parameter Specification
Electrical 230 volts Nominal, 10 Amps
Ambient Temperature Operating range: 10°C to 35°C
Gas Supplies Propane and air compressor
Product Images

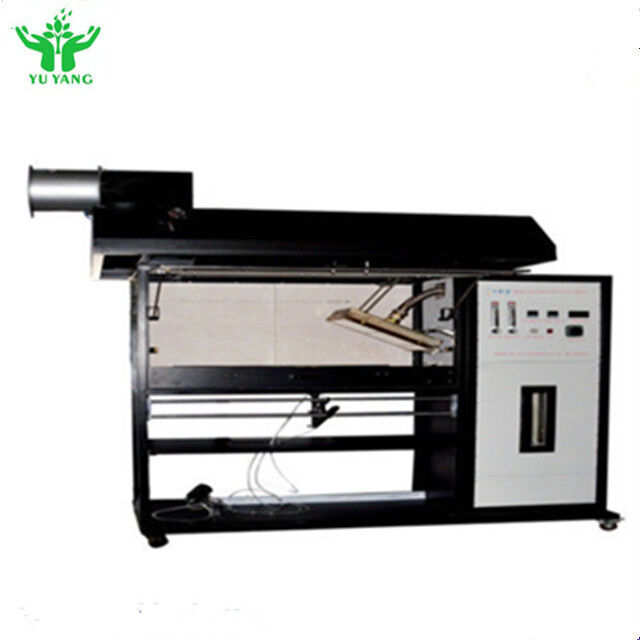

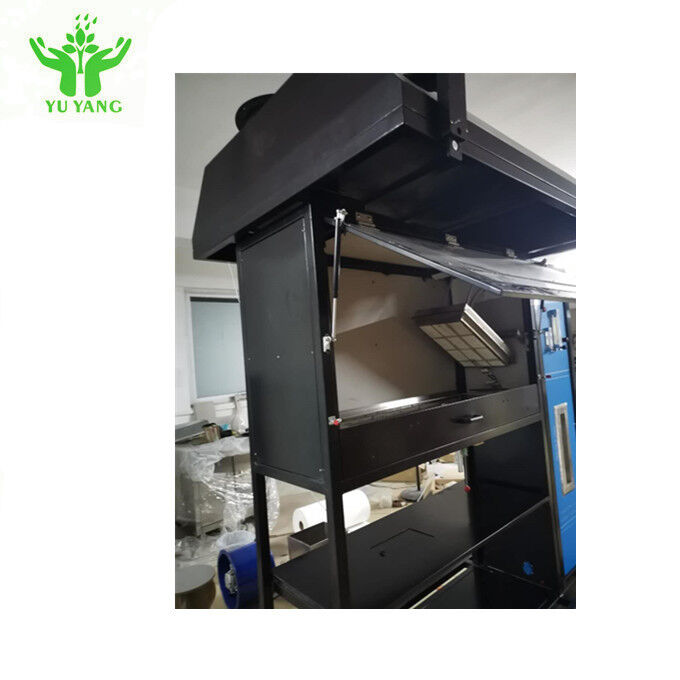

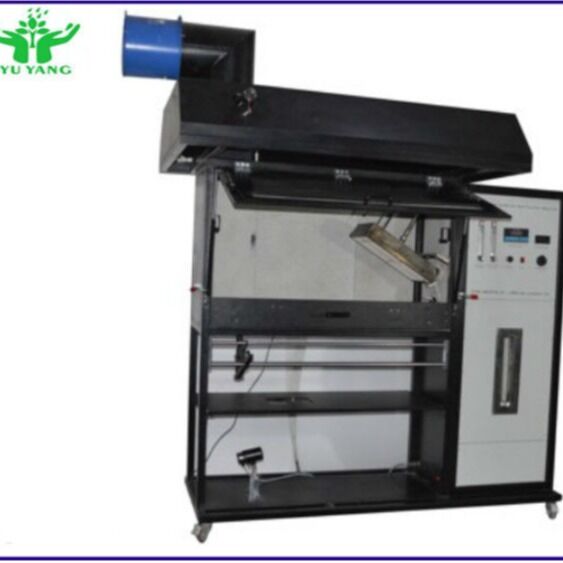

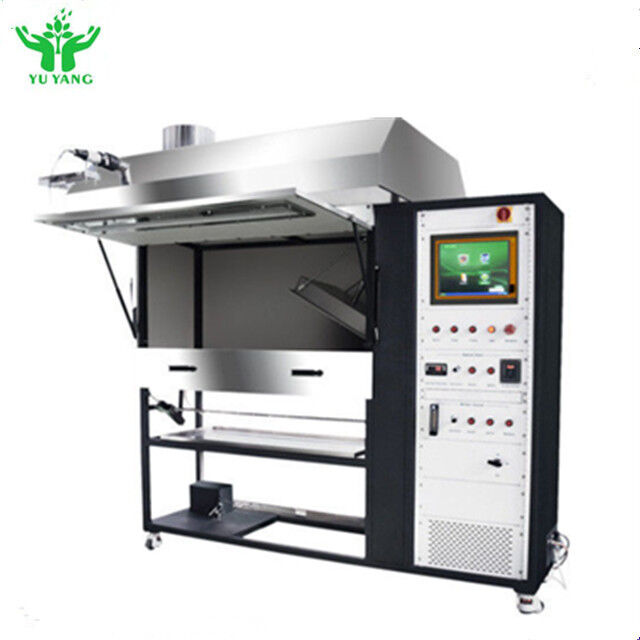

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 0
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 1
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 2
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 3
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 4
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 5
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 6
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 7
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 8
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 9
