Name: 16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
Price: 2.00 USD
Availability: InStock

家へ > 製品 > 燃焼性の試験装置 >

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

SPI flammability testing equipment

electronic fire testing machine

16 CFR Part 1611 testing equipment

起源の場所:

広東省、中国

ブランド名:

YUYANG

連絡ください

引用を要求しなさい

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

製品詳細

力:

電圧:

220V

保護クラス:

ip55

炎の長さ:

1/2"

燃料ガス:

ブタン

サンプルサイズ:

3インチ×9インチ

バーナー距離:

9/16 インチ

マークの行間隔:

6 "

電源:

AC 220V 50HZ 3A

試験室サイズ:

30cmX25cmX37cm

サンプルホルダーの角度:

45°

サンプルフィクスチャサイズ:

長さ11インチ、幅4 15/16インチ、スロット幅1 1/2インチ。

音量:

46x29x52cm

重さ:

≈20kg

電源:

220V 50HZ

ハイライト:

SPI flammability testing equipment

electronic fire testing machine

16 CFR Part 1611 testing equipment

支払いと送料の条件

最小注文数量

価格

$2,000-2,950

BS 476 Part 7 Building Material Surface Flame Spread Test Apparatus Electronic

最良の価格を入手する

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

最良の価格を入手する

ISO 834 BS 476 Part 20&22 Building Materials and Structures Vertical Fire Resistance Test Furnace

最良の価格を入手する

Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester

最良の価格を入手する

連絡ください

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

今連絡してください

製品説明

16 CFR Part 1611 SPI Flammability Testing Equipment

This electronic fire testing machine is designed for evaluating the flame retardant properties of polyethylene plastic film materials according to 16 CFR Part 1611 standards.

Application

Suitable for testing non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent, and opaque variants. Accommodates flat, convex, cast, or surface-treated materials.

Testing Principle

Samples are clamped in a fixture at a 45° angle and ignited. The instrument measures the time required for flames to travel 6 inches along the inclined surface, calculating the burning rate for accurate assessment.

Compliance Standard

Meets CPSC 16 CFR Part 1611 requirements for flammability testing of plastic films.

Technical Specifications

Parameter	Specification
Test Chamber	30cm × 25cm × 37cm with five 20mm air holes on each side
Sample Holder	45° inclination
Sample Fixture	Length 11", width 4 15/16", slot width 1 1/2", 1" end bending length, width 3 7/8", bending angle 45°
Mark Line Spacing	6"
Burner Distance from Sample	9/16"
Flame Length	1/2"
Fuel Gas	Butane
Sample Size	3" × 9"
Dimensions (W×D×H)	46cm × 29cm × 52cm
Weight	≈20kg
Power Supply	AC 220V 50Hz 3A

Operation Procedure

Pre-operation checklist:

Verify power supply meets requirements
Ensure adequate gas supply in tank
Inspect pipelines for damage or leaks

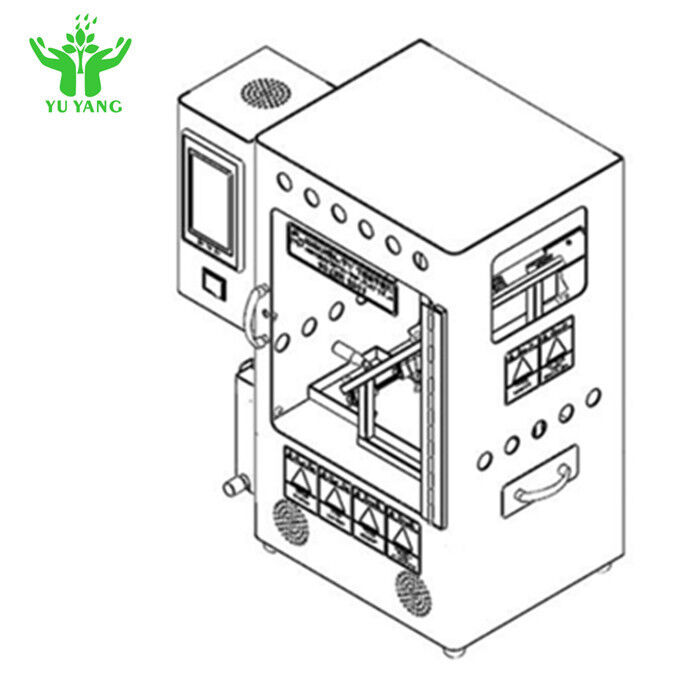

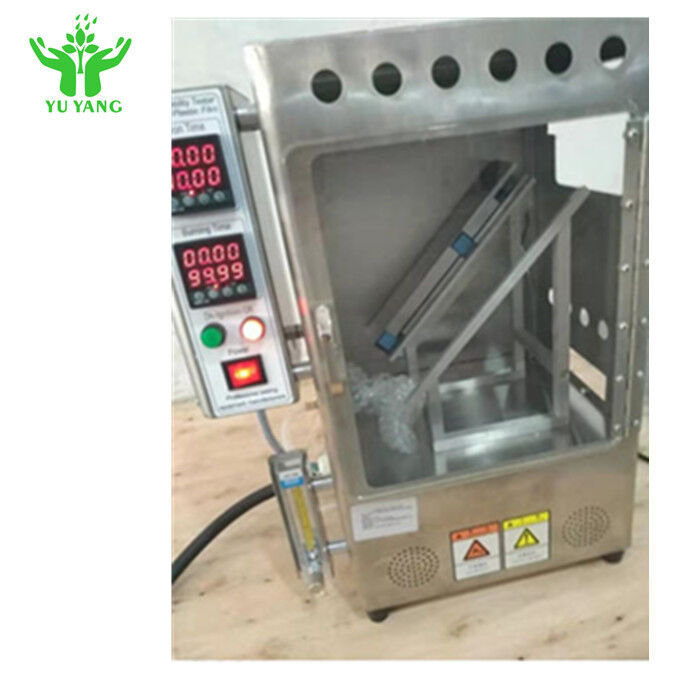

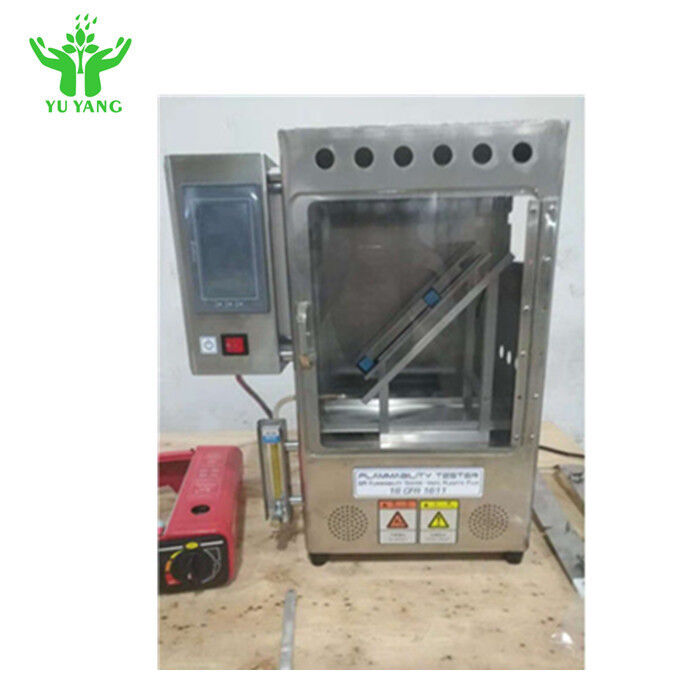

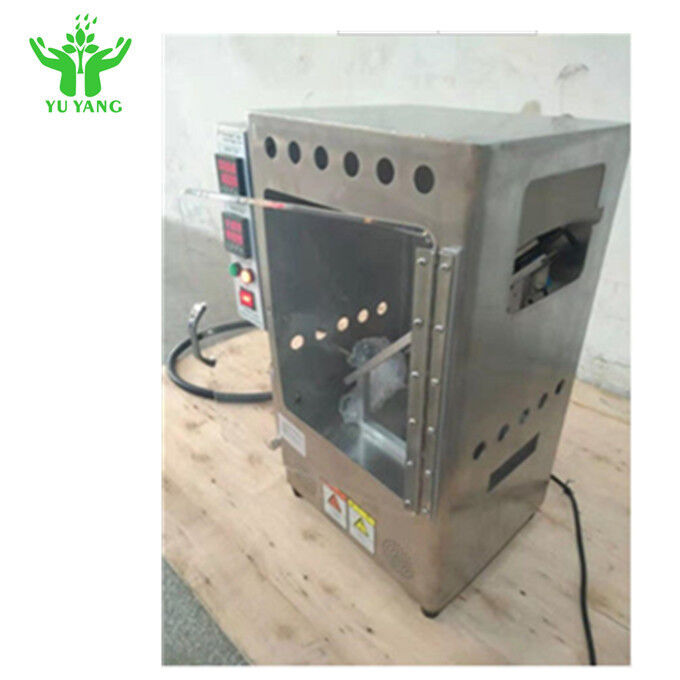

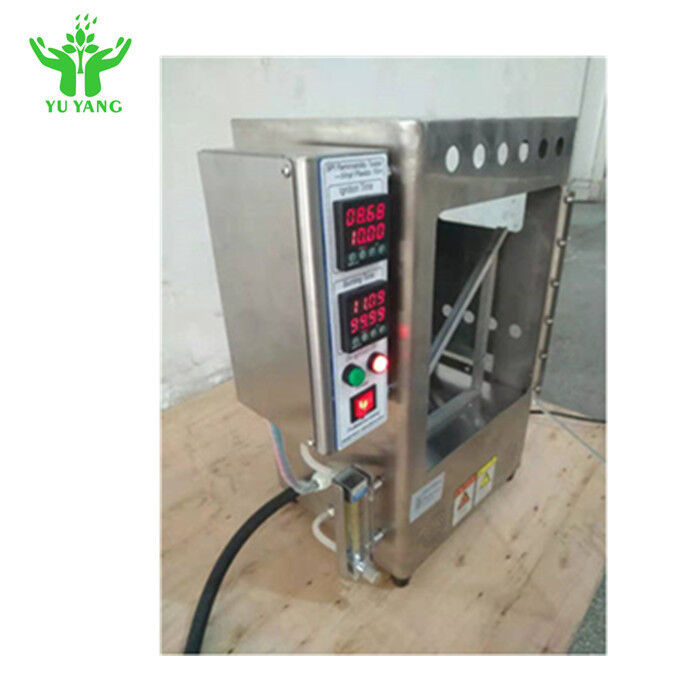

Product Images

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD
Located in Wanjiang District, Dongguan City, Guangdong Province, China - a region known for its industrial prosperity and convenient transportation.

We specialize in developing and manufacturing testing equipment including:

Fire Testing Equipment
Building Material Fire Testers
Wire and Cable Fire Testers
Environmental Test Chambers
Textile Testing Equipment
Toys Testing Equipment

With decades of research and development experience, YUYANG maintains a leading position in high-quality, cost-effective testing equipment. Our products serve various industries including scientific institutions, colleges, inspection agencies, automotive, electronics, aerospace, and more.

All equipment is designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, IEC, and others.
