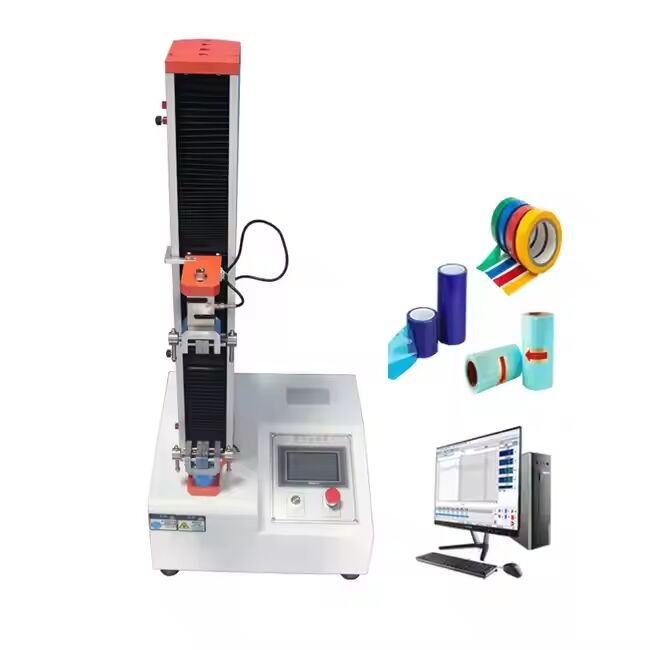

100KG Intelligent Pull Machine Electronic Tensile Testing Machine
Professional spring and elastic tensile testing machine for comprehensive material analysis across multiple industries.
Product Overview
YY-C003 Universal Tensile Testing Machine (0-20KN) compliant with ISO 7500 & ASTM D412 standards, designed for comprehensive material testing across multiple industries.
Testing Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Applications
Suitable for industries including aerospace, petrochemicals, machinery manufacturing, metal materials & products, plastics, wires & cables, rubber, paper-plastic printing & packaging, adhesive tapes, luggage & bags, textile fibers, textiles, food, and pharmaceuticals.
Tests the physical properties of various materials, finished products, and semi-finished products. With different fixtures, it can perform tests including tension, compression, holding, pressure retention, bending, tearing, peeling, adhesion, and shearing.
Ideal testing and research device for factories, technical supervision departments, inspection institutions, research institutes, and universities.
Key Features
- Innovative material testing machine with fully computerized operation, evolved from conventional testing machines to eliminate bulkiness and complexity
- Integrated panel and aluminum profile plate structure with high precision, low resistance, and seamless precision ball screws and guide columns for enhanced load efficiency and structural rigidity
- Advanced servo motor drive system with servo driver for high transmission efficiency, stable operation, low noise, and accurate speed control
- Computer-based control system with QCTech testing software for complete test parameter setting, status control, data collection & processing, result display, and printing
- Dedicated testing system supporting tension, compression, bending, shearing, tearing, and peeling tests with comprehensive data processing capabilities
Technical Parameters & Specifications
Software Technical Parameters
- Software operating system language: English
- Force units (N, KN, Kgf, Lbf) and length units (mm, cm, in) can be freely converted
Control Modes
- Computer software configures control methods for speed, load fracture, running time, etc.

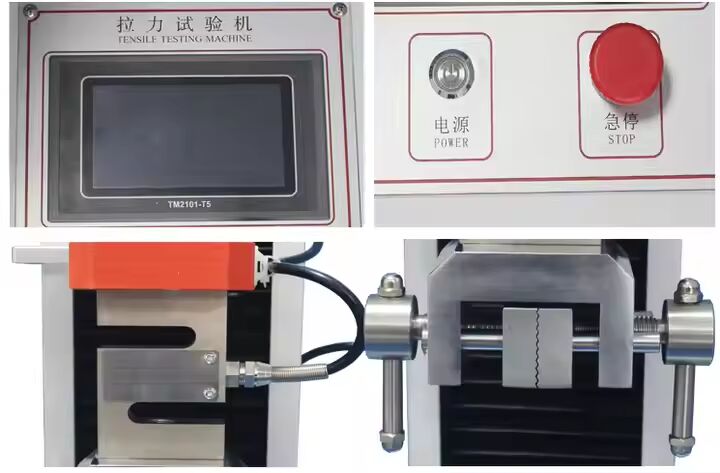

- Dedicated manual operation box facilitates calibration and positioning when loading and holding test specimens
- Automatically detects material fracture, breakage, etc., and stops automatically; automatic return can be configured
Curve Types
- Load-displacement, Load-time, Displacement-time
- Stress-strain, Strain-time, Stress-time
- Horizontal and vertical coordinates of the curve can be set arbitrarily
Available Test Data
Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value, etc. (Customers need to select these before ordering)
