1 Ton UTM Hydraulic Universal Tensile Testing Machine
Product Applications
Suitable for testing tensile strength, peeling strength, deformation rate, breaking force, peeling force, and opening force of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, and other materials.
Testing Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Industry Applications
Tape, automotive, ceramics, composite materials, construction, food and medical equipment, metal, paper, packaging, rubber, textiles, wood, communication, and various special-shaped materials.
Ideal testing and research device for factories, technical supervision departments, inspection institutions, research institutes, and universities.
Primary Function
Primarily used to test mechanical properties of metals (tension, compression, bending) and automatically calculates parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and modulus of elasticity according to standards like GB, JIS, ASTM, and DIN.

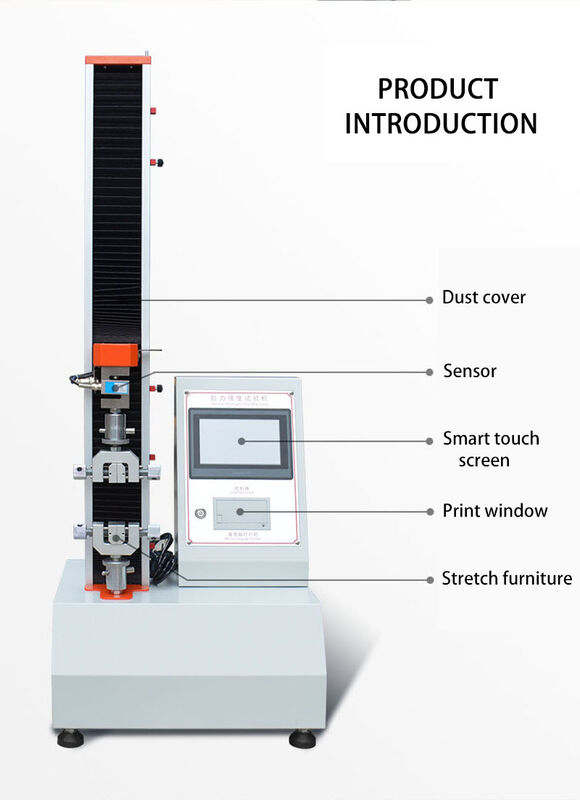

Key Features
- Innovative material testing machine with fully computerized operation, evolved from conventional testing machines to eliminate bulkiness and complexity
- Integrated panel and aluminum profile plate structure with high precision, low resistance, and seamless precision ball screws and guide columns for enhanced load efficiency and structural rigidity
- Advanced servo motor drive system with servo driver for high transmission efficiency, stable operation, low noise, and accurate speed control
- Computer-based control system with QCTech testing software for complete test parameter setting, status control, data collection & processing, result display, and printing

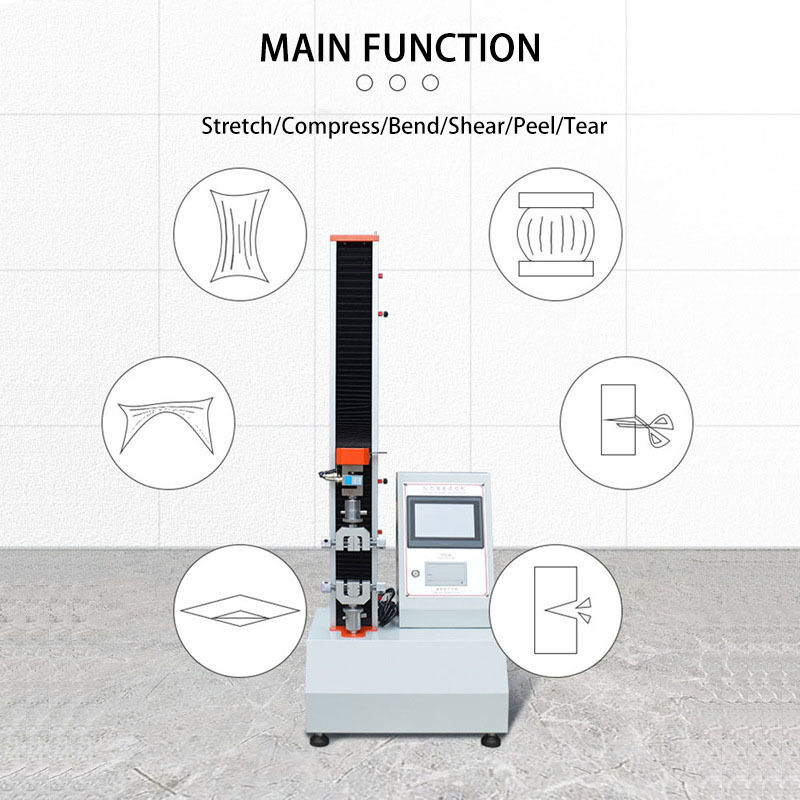

- Dedicated testing system supporting tension, compression, bending, shearing, tearing, and peeling tests with comprehensive data processing capabilities
Technical Parameters & Specifications
Control Modes
Computer software configures control methods for speed, load fracture, running time, etc. Dedicated manual operation box facilitates calibration and positioning when loading and holding test specimens. Automatically detects material fracture, breakage, etc., and stops automatically; automatic return can be configured.
Curve Types
Load-displacement, Load-time, Displacement-time, Stress-strain, Strain-time, Stress-time. Horizontal and vertical coordinates of the curve can be set arbitrarily.
Available Test Data
Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value, etc. (Customers need to select these before ordering)
Safety Features
Multiple protections including overload, overcurrent, overvoltage, undervoltage, overspeed, stroke limit, etc. Data results follow the standard report format specified by the current standard.
