Name: Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE009
Price: 11957 USD
Availability: InStock

家へ > 製品 > 環境試験室 >

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YYE009

連絡ください

引用を要求しなさい

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

製品詳細

力:

220V

温度範囲:

-40℃～+150℃

湿度範囲:

20%~98% 相対湿度

冷却時間:

1℃/分（平均冷却速度）

重量(kg):

120KG

熱:

約3.0℃/分で昇温

ハイライト:

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

支払いと送料の条件

最小注文数量

1個

価格

negotiable

パッケージの詳細

木箱

受渡し時間

7～30日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

1ヶ月あたりの5 PC

Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

最良の価格を入手する

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

最良の価格を入手する

Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

最良の価格を入手する

ビデオ

試験装置用恒温恒湿環境試験槽

最良の価格を入手する

連絡ください

今連絡してください

製品説明

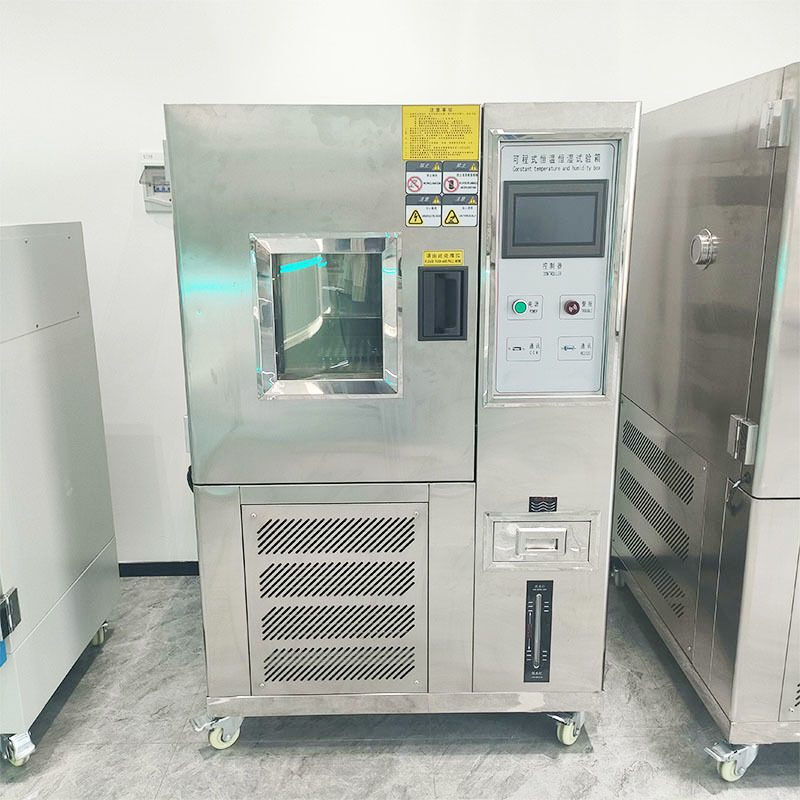

Constant Temperature and Humidity Testing Equipment

Professional environmental test chamber designed for stability testing under controlled temperature and humidity conditions.

Applications

This equipment tests material resistance to heat, cold, dry, and humid conditions. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace products, and more.

Key Features

Precise control from 5% to 98% R.H. ±0.5% and -20°C to 150°C ±0.5°C
Widely used for heat, cold, dry, and humidity resistance testing
Ideal for conditioning samples prior to testing
Designed for quality control across multiple industries including electronics, electrical equipment, automotive, metals, foodstuffs, chemicals, and building materials

Technical Specifications

Model	YYE009-50L
Inner Size (W×H×D)	35×36×40 cm
External Size (W×H×D)	48×61×110 cm
Temperature Range	-20°C to +150°C
Humidity Range	20% to 98% R.H.
Temperature Accuracy/Uniformity	0.1°C / ±2.0°C
Temperature Fluctuation	±0.5°C
Humidity Accuracy/Control Accuracy	±0.1% / ±2.5%
Heating/Cooling Rate	Heating: ~3.0°C/min; Cooling: ~1.0°C/min
Chamber Materials	Inner: SUS#304 Stainless Steel; Outer: Advanced cold plate nano paint
Insulation Materials	High-temperature resistant, high-density foam insulation
Cooling System	Air cooling/single segment compressor (-20°C)
Power Supply	AC220V 50/60Hz & 1
Weight	120 kg

Standard Components

Watching window
50mm testing hole
PL internal bulbs
Wet and dry bulb gauze
Partition plate
Castors ×4
Foot cups ×4

Safety Protection

Fuse switch
Compressor overload switch
Refrigerant high and low pressure protection switch
Super humidity over-temperature protection switch
Fuse protection
Failure warning system

About YUYANG Instrument

DONGGUAN YUYANG INSTRUMENT CO., LTD. is a high-tech enterprise specializing in the R&D and manufacturing of testing equipment including fire testing equipment, environmental test chambers, textile testing equipment, and more. With decades of experience, YUYANG maintains a leading position in providing high-quality, cost-effective testing solutions that comply with international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, and IEC.

Our products serve numerous sectors including scientific research institutions, universities, inspection authorities, automotive parts, electronics, electrical appliances, lithium batteries, plastics, telecommunications, aerospace, and textiles.
