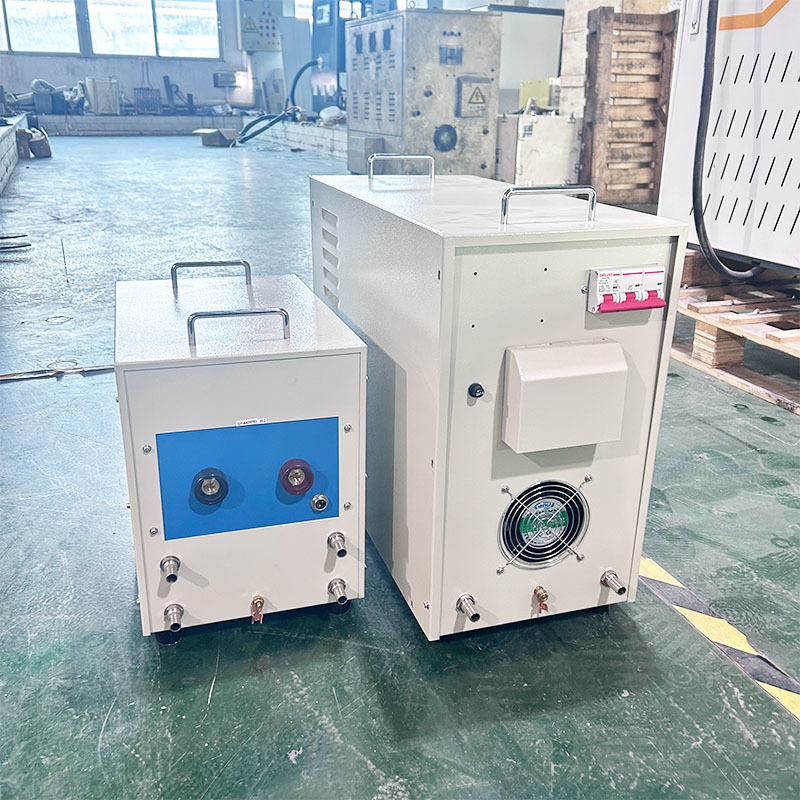

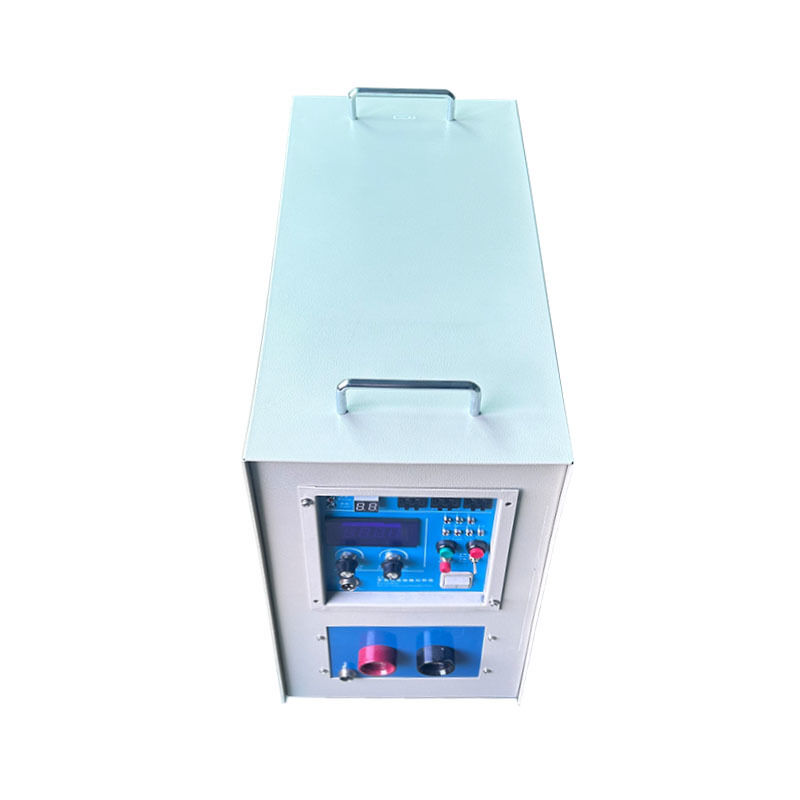

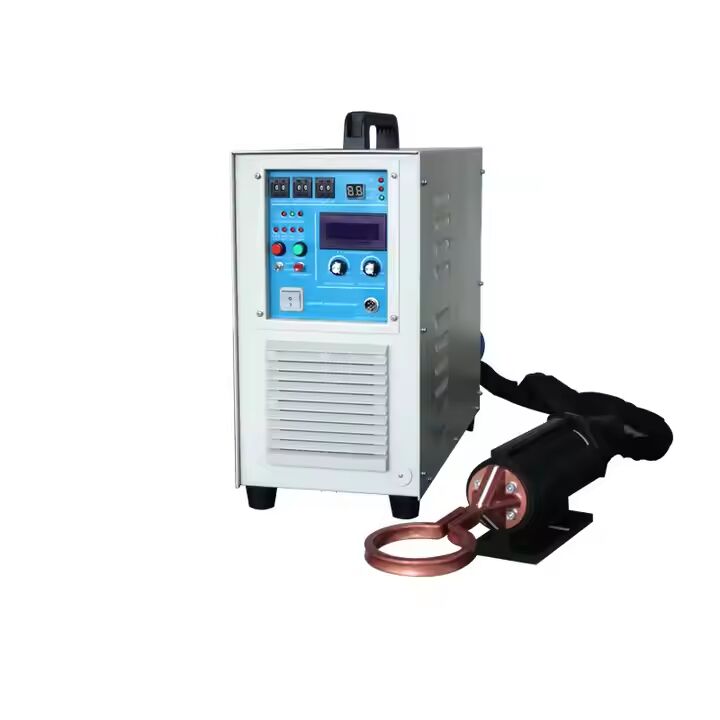

Name: High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYH-60AB（三相）
Price: 25,000.00 USD
Availability: InStock

家へ > 製品 > 燃焼性の試験装置 >

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

high frequency induction heating generator

electromagnetic heating generator for steel bars

metal metallurgy machinery heating equipment

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YYH-60AB（三相）

連絡ください

引用を要求しなさい

製品詳細

仕事力:

340V-430V

最大入力電流:

90A

出力電力:

60KW

変動周波数:

50-150KHZ

冷却水の流量:

0.2Mpa、6L/min

水温保護ポイント:

50c

製品サイズ:

メイン:640X350X550mm トランス:510X300X450mm

正味重量:

メイン : 50kgs kg トランス : 28kg

ハイライト:

high frequency induction heating generator

electromagnetic heating generator for steel bars

metal metallurgy machinery heating equipment

支払いと送料の条件

最小注文数量

1セット

価格

pending

パッケージの詳細

ベニヤ箱

受渡し時間

5～10営業日

支払条件

T/T、L/C、ウェスタンユニオン

供給の能力

月200セット

工業級インダクションヒーター 24H メタル加工作業のためのカスタムパワーで1台のマシンから注文

最良の価格を入手する

ビデオ

Automatic Plastic Bag Sealer Hot Air Impulse Heat Sealing Machine with Aluminum Frame Pedal Induction Sealing Machine

最良の価格を入手する

ビデオ

High Quality 25kw Portable Induction Heater Machine for Metal Heat Treatment 220v with New Engines Pumps Motors

最良の価格を入手する

ビデオ

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

最良の価格を入手する

連絡ください

8613825729462

sales03@yuyangtest.com

86-769-26622869

今連絡してください

製品説明

High Frequency Electromagnetic Induction Heating Generator for Steel Bar

Advanced induction heating system designed for steel bar processing in metal and metallurgy machinery applications.

Technical Specifications

Model	YYH-60AB (Three phase)
Work Power	340v-430v
Maximum Input Current	90A
Output Power	60kw
Fluctuating Frequency	50-150KHZ
Cooling Water Flow Rate	0.2Mpa, 6L/min
Water Temperature Protection	50°C
Main Unit Dimensions	640×350×550mm
Transformer Dimensions	510×300×450mm
Main Unit Net Weight	50kg
Transformer Net Weight	28kg

Company Profile

Established in 2018 and located in Guangdong, China, we are a growing enterprise with 11-50 employees serving global markets.

Quality Assurance

Pre-production sampling before mass production
Final inspection before shipment

Global Reach

Serving markets worldwide including South Asia, Eastern Asia, Southeast Asia, Eastern Europe, North America, Oceania, and Western Europe.

Product Range

We specialize in manufacturing comprehensive testing equipment including:

Fire Testing Equipment
Environmental Test Chambers
Textile Testing Equipment
Toys Testing Equipment
Wire and Cable Test Machines

Business Services

Delivery Terms

FOB, CFR, CIF, EXW

Payment Methods

T/T, L/C, D/P D/A, Credit Card, Western Union, Cash

Supported Currencies

USD, EUR, JPY, AUD, HKD, GBP, CNY

Languages

English, Chinese
