Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool

Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool

induction heater automotive tool

metal heating induction machine

automotive bolt heater tool

起源の場所:

中国

ブランド名:

YUYANG

証明:

CE

モデル番号:

YY-70AB

連絡 ください
引用を要求しなさい
Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool
Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool
製品詳細
最大変動力:
70kw
仕事力:
340V-430V
入力電流:
70a
変動する出力電力:
70kva
変動周波数:
30-80khz
出力電流:
400-3200A
冷却水の流量:
0.08-0.16Mpa 9L/Min
水温保護ポイント:
40c
製品サイズ:
780×370×620mm
正味重量:
54 kg
ハイライト:

induction heater automotive tool

,

metal heating induction machine

,

automotive bolt heater tool

支払いと送料の条件
最小注文数量
1セット
価格
$2000
パッケージの詳細
ベニヤ箱
受渡し時間
5～10営業日
支払条件
T/T、L/C、ウェスタンユニオン
供給の能力
月200セット
関連製品
良い価格 High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery オンライン ビデオ

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

最良 の 価格 を 入手 する
良い価格 Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v オンライン ビデオ

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

最良 の 価格 を 入手 する
良い価格 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine オンライン ビデオ

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

最良 の 価格 を 入手 する
良い価格 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery オンライン ビデオ

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

最良 の 価格 を 入手 する
連絡 ください
8613265296009
sales13@yuyangtest.com
86-769-26622869
今連絡してください
製品説明

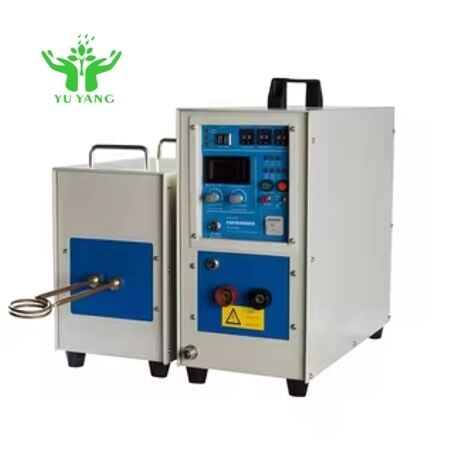

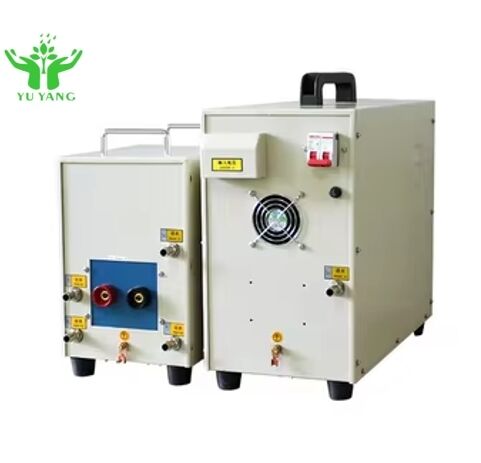

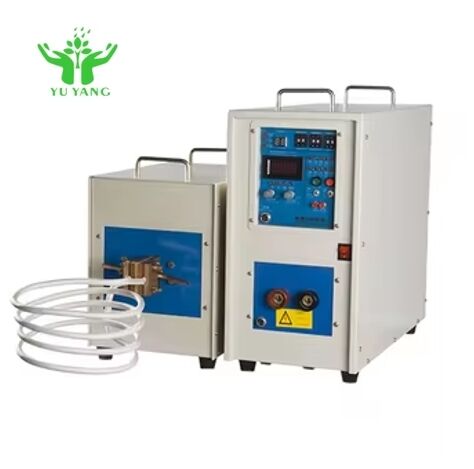

Induction Heater Metal Heating Tools
Professional automotive bolt heater tool and induction heating machine for industrial applications.
Key Characteristics
  • Advanced IGBT inverting device with automatic frequency tracking
  • High-frequency heating with rapid performance - consumes only 20-30% of traditional electronic tube induction heating machines
  • Secure operation with safe voltage equipment and comprehensive protection systems
  • Manual and automatic regulation with protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation - no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Features
Our High Frequency Induction Heating Machine incorporates the most advanced electrical components and innovative techniques. It enables rapid, localized metal heating and can penetrate non-metal materials to heat metals until fusion occurs, all without direct contact. This technology provides safe, economical solutions without environmental pollution.
Product Advantages
  • Portable Design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers, providing exceptional flexibility for heating tasks. Monolithic shell design with resistance to weak acids and alkalis.
  • Complex Metal Heating: Hand-held machine head with amorphous magnetic core material offers wider frequency range and superior heating performance for irregular shaped workpieces.
  • Efficient & Safe Operation: Intelligent operation with rapid heating (8 seconds), ideal for air conditioning and refrigerator industry copper pipe welding. Stable magnetic field output ensures consistent long-term heating performance.
Technical Parameters
Model YY-70AB (Three phase)
Work Power 340V-430V
Input Current 70A
Fluctuating Output Power 70KVA
Fluctuating Frequency 30-80KHZ
Output Current 400-3200A
Cooling Water Flow Rate 0.08-0.16Mpa 9L/Min
Water Temperature Protection 40°C
Main Unit Dimensions 780x370x620 mm
Transformer Dimensions 510x260x410 mm
Main Unit Net Weight 54 kg
Transformer Net Weight 32.5 kg
Industrial Applications
  • Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: motor rotor hot-cooperate, electrode silver soldering and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool 0 Induction Heater Metal Heating Tools Automotive Tools Induction Heating Machine Automotive Bolt Heater Tool 1
Frequently Asked Questions
Company Information
Based in Guangdong, China, established in 2018. We serve global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Our team consists of 11-50 professionals.
Quality Assurance
We guarantee quality through pre-production samples before mass production and final inspection before shipment to ensure every product meets our high standards.
Product Range
We specialize in Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.
Why Choose Us
As a high-tech enterprise, we specialize in developing and manufacturing advanced testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Services Provided
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
