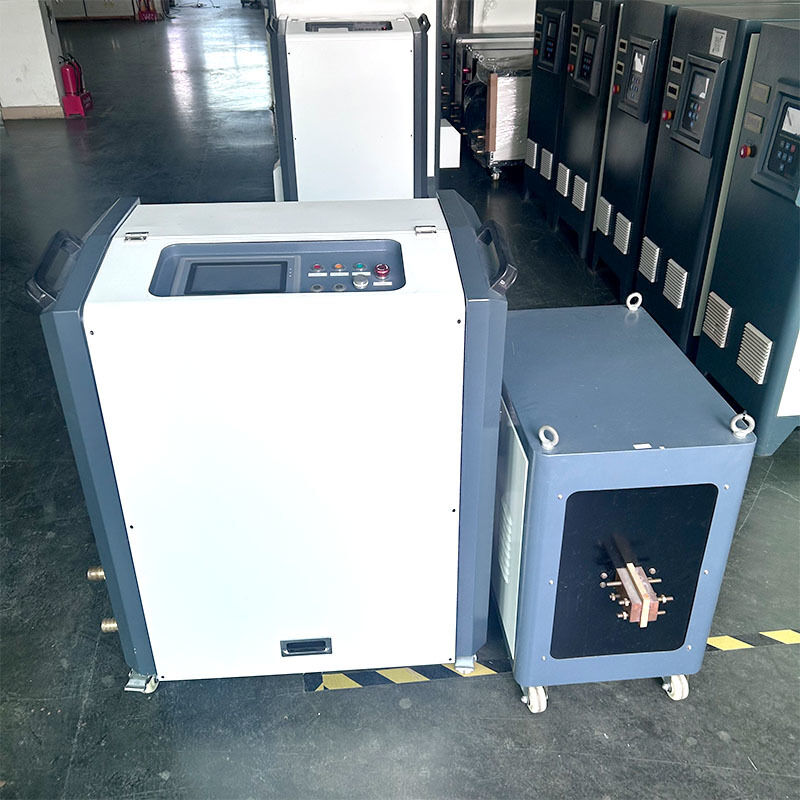

Medium Frequency Induction Heating Forging Machine
Advanced induction heating system designed for metal bar, bolt, and nut heating applications with steel motor and pump core components.
Key Characteristics
- Advanced IGBT inverting technology with automatic frequency tracking
- High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube systems
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection systems
- Environmentally friendly operation - no open flame, noise, or pollution emissions
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes
Advanced Technology Features
Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
Portable Design
Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.
Complex Metal Heating
Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.
Efficient Operation
Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.
Technical Specifications
| Model |
YYSQ-TC-60A (Three phase) |
| Work Power |
340V-430V |
| Maximum Input Current |
90A |
| Output Power |
60KW |
| Fluctuating Frequency |
5-20KHZ |
| Output Current |
400-4500A |
| Cooling Water Flow Rate |
0.08-0.16Mpa 12L/Min |
| Water Temperature Protection |
50°C |
| Product Dimensions |
808×530×1260mm |
| Net Weight |
102kg |
Industrial Applications
- Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
- Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
- Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
- Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
- Communication Equipment: Copper coaxial cable connector soldering and related applications
