Name: IEC 60068 Temperature Humidity Test Chamber PCB Electronic Component Reliability Aging Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE009-100L
Price: 2000 USD
Availability: InStock

家へ > 製品 > 環境試験室 >

IEC 60068 Temperature Humidity Test Chamber PCB Electronic Component Reliability Aging Equipment

IEC 60068 temperature humidity test chamber

PCB electronic component reliability tester

environmental test chamber with warranty

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YYE009-100L

連絡ください

引用を要求しなさい

製品詳細

内寸：WHD(mm):

500*400*500

外形寸法：WHD(mm):

1000*1000*1400

温度範囲:

-20ºCへの+70ºC

湿度範囲:

10%~85%RH

温度分析精度/均一性:

0.1℃/±2.0℃

温度変動:

±0.5ºC

湿気の分析的な正確さの湿気の制御正確さ:

±0.1%;±3%

熱;冷却時間:

約3.0°C/分に熱します.約1.0°C/分に冷却します.

力:

AC220V 50/60Hz & 1

重量(kg):

180kg

加熱時間:

3℃/min(平均上昇速度)

冷却時間:

1℃/min(平均トンネル速度)

ハイライト:

IEC 60068 temperature humidity test chamber

PCB electronic component reliability tester

environmental test chamber with warranty

支払いと送料の条件

最小注文数量

1セット

価格

$2000

パッケージの詳細

ベニヤ箱

受渡し時間

5～10営業日

支払条件

T/T、L/C、ウェスタンユニオン

供給の能力

月200セット

Food Fermentation Constant Temperature Humidity Chamber Programmable Environmental Quality Test

最良の価格を入手する

ビデオ

Seed Germination Constant Temperature Humidity Chamber Plant Growth Simulation LED Light Optional

最良の価格を入手する

ビデオ

Medical Device Cosmetic Stability Temperature Humidity Chamber GMP Environmental CE Certified

最良の価格を入手する

ビデオ

Custom OEM ODM Constant Temperature Humidity Test Chamber Climatic Environmental Manufacturer

最良の価格を入手する

連絡ください

8613265296009

sales13@yuyangtest.com

86-769-26622869

今連絡してください

製品説明

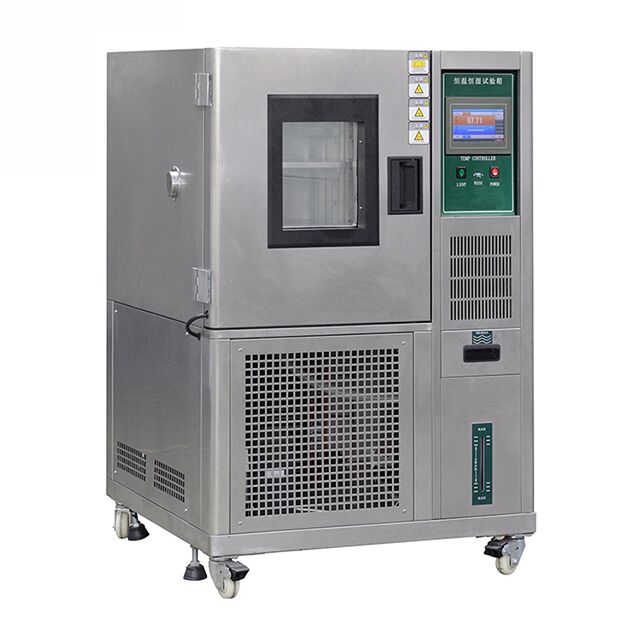

IEC 60068 Temperature Humidity Test Chamber

PCB Electronic Component Reliability Aging Equipment

Applications

This equipment tests material resistance to heat, cold, dry, and humidity conditions. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace products, and various industrial applications.

Key Features

Precise and durable conditioning system with humidity range from 5% to 98% R.H. ±0.5%
Temperature range from -20°C to 150°C ±0.5°C
Designed for heat, cold, dry, and humidity endurance testing
Ideal for quality control in electronics, electrical equipment, automotive, metal, food, chemical, and building materials industries
Suitable for adhesion tape, printing, packaging, and luggage testing applications

Technical Specifications

Model	YYE009-100L
Inner Size (W×H×D)	500×400×500 mm
External Size (W×H×D)	1000×1000×1400 mm
Temperature Range	-20ºC to +70ºC
Humidity Range	10%~85% R.H.
Temperature Analytic Accuracy/Uniformity	0.1ºC/±2.0ºC
Temperature Fluctuation	±0.5ºC
Humidity Analytic Accuracy/Control Accuracy	±0.1%;±3%
Heating Rate	3℃/min (average)
Cooling Rate	1℃/min (average)
Power Supply	AC220V 50/60Hz & 1
Weight	180 kg

Compliance Standards

GB/T2423.1-2008
GB/T2423.2-2008
GB/T2423.3-2006
GB/T2423.4-2008
GB10589-2008
GB11158-2008
GB10586-2006
GJB150.3-1986
GJB150.4-1986
GJB150.9-1986
