Name: Professional 60KW Medium Frequency Induction Furnace for Steel Billet Heating and Forging Plant
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYM-60AB（三相）
Price: 25,000.00 USD
Availability: InStock

家へ > 製品 > 燃焼性の試験装置 >

Professional 60KW Medium Frequency Induction Furnace for Steel Billet Heating and Forging Plant

60KW induction furnace for steel heating

medium frequency furnace for forging plants

industrial billet heating furnace with warranty

起源の場所:

中国

ブランド名:

YUYANG

証明:

モデル番号:

YYM-60AB（三相）

連絡ください

引用を要求しなさい

製品詳細

仕事力:

340V-430V

入力電流:

95A

変動する出力電力:

60KW

変動周波数:

1～10kHz

出力電流:

400〜2400A

冷却水の流量:

0.08-0.16Mpa 10L/分

水温保護ポイント:

50c

製品サイズ:

メイン：690x640x1060 mm トランス：870x430x750 mm

正味重量:

メイン：95kg トランス：79.5kg

ハイライト:

60KW induction furnace for steel heating

medium frequency furnace for forging plants

industrial billet heating furnace with warranty

支払いと送料の条件

最小注文数量

1セット

価格

pending

パッケージの詳細

ベニヤ箱

受渡し時間

5～10営業日

支払条件

T/T、L/C、ウェスタンユニオン

供給の能力

月200セット

Industrial 120KW Ultra High Frequency Induction Heater for Small Parts Quenching and Hardening

最良の価格を入手する

ビデオ

20KW High Frequency Induction Brazing Machine for Diamond Tool Segment Soldering and Welding ISO

最良の価格を入手する

ビデオ

Professional 60KW Medium Frequency Induction Furnace for Steel Billet Heating and Forging Plant

最良の価格を入手する

ビデオ

Digital 100KW Induction Heating System for Industrial Boiler Pipe Welding and Stress Relieving CE

最良の価格を入手する

連絡ください

8613825729462

sales03@yuyangtest.com

86-769-26622869

今連絡してください

製品説明

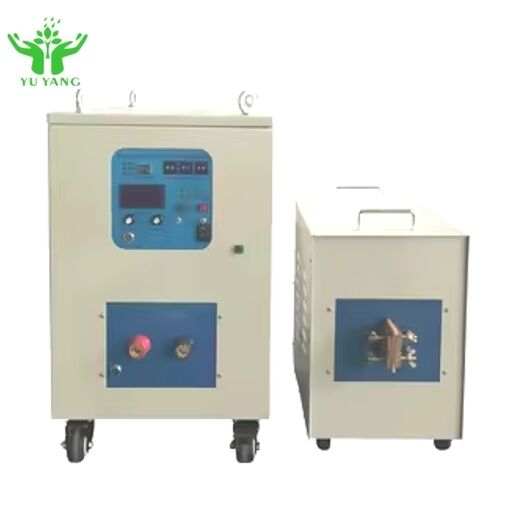

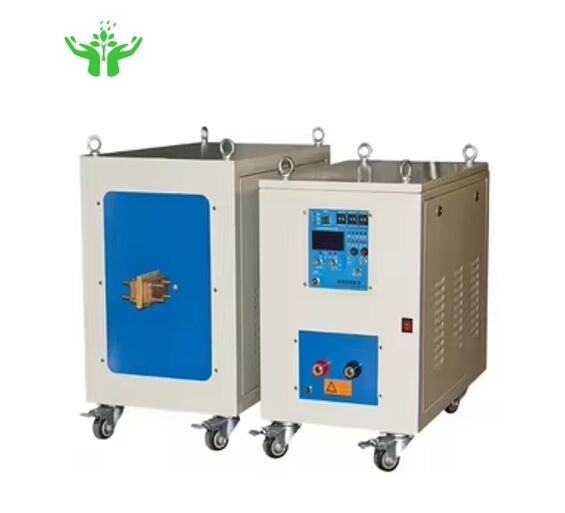

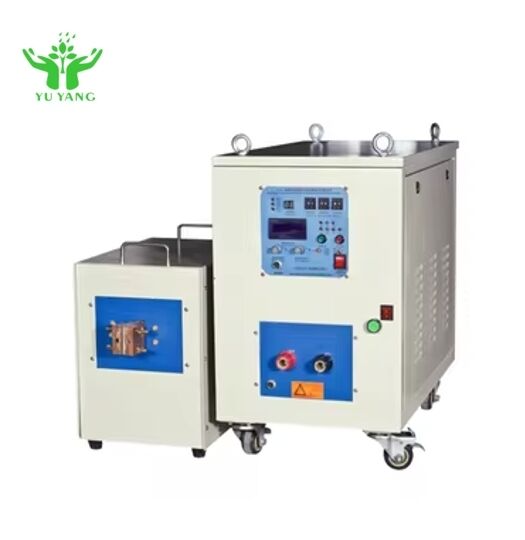

Professional 60KW Medium Frequency Induction Furnace for Steel Billet Heating and Forging Plant

Professional 80KW IGBT high frequency induction heating machine designed for metal heat treatment applications including large gear hardening and surface quenching. Operating on three-phase power with advanced components for reliable performance.

Technical Specifications

Model	YYM-60AB (Three phase)
Work Power	340V-430V
Maximum Input Current	95A
Output Power	60kw
Fluctuating Frequency	1-10khz
Output Current	400-2400A
Flow Rate of Cooling Water	0.08-0.16Mpa 10L/Min
Water Temperature Protection Point	50°C
Product Size (Main Unit)	690x640x1060 mm
Product Size (Transformer)	870x430x750 mm
Net Weight (Main Unit)	95 kg
Net Weight (Transformer)	79.5 kg

Manufacturer Information

Location: Guangdong, China

Established: 2018

Company Size: 11-50 employees

Global Distribution: South Asia, Eastern Asia, Domestic Market, Southeast Asia, Eastern Europe, North America, Oceania, Western Europe

Quality Assurance

Pre-production sampling before mass production
Final inspection before shipment

Product Range

Fire Testing Equipment
Environmental Test Chambers
Textile Testing Equipment
Toys Testing Equipment
Wire and Cable Test Machines

Why Choose Our Products

We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.

Services & Support

Delivery Terms: FOB, CFR, CIF, EXW

Payment Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY

Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash

Languages: English, Chinese
